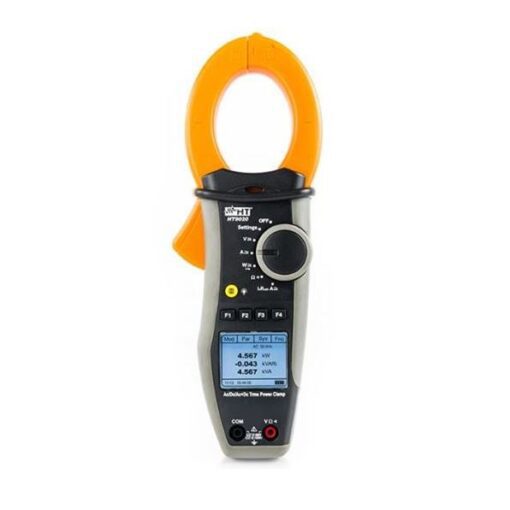

HT Italia HT9020 Clamp Meter with Powers/Harmonics and Inrush Currents

HT Italia HT9020 Clamp Meter with Powers/Harmonics and Inrush Currents - Image 2

HT Italia HT9020 Clamp Meter with Powers/Harmonics and Inrush Currents

The HT Italia HT9020 Clamp-on power quality analyzer has been designed for measuring DC, AC+DC TRMS current up to 1000A according to CAT IV 600V in compliance with standard IEC/EN61010-1

Features

DC and AC+DC TRMS voltage
DC and AC+CD TRMS current
Phase sequence and conformity test
AC powers and power factor on single-phase and/or balanced three phase systems
AC energies on single-phase and/or balanced three-phase systems
DC power
AC voltage harmonics up to 25° order and THD%
AC current harmonics up to 25° order and THD%
Frequency on voltage (with test leads) and current (with clamp jaw)
Resistance and continuity test
Electric motor starting currents (Dynamic Inrush)
Detection of AC voltage with and without contact with built-in sensor
Each of these functions can be selected using the 6-position selector switch, including
OFF position. Keys F1, F2, F3, F4/OK and H / ESC / are also provided

Authorised Australian Distributor

HT 9020 Manual

Click here to Make an Enquiry

[gravityform id="3" title="false" description="true"]

SKU: HT ITALIA HT9020 Categories: Clampmeters, HT Italia, Power Quality Analyzers/Loggers Tags: Clampmeters, HT ITALIA, Power Measurement/Quality

Description

HT Italia HT9020 Clamp Meter with Measurement of Powers/Harmonics and Inrush Currents

The Ht Italia HT9020 have been designed for measuring DC, AC+DC TRMS current up to 1000A to obtain CAT IV 600V in compliance with standard IEC/EN61010-1
It also measure Active, Reactive and Apparent Power, Energy, voltage/current harmonic analysis up to the 25th with THD% calculation in balanced single-phase or three-phase systems. They also allow testing phase sequence and concordance with the 1-terminal measuring method. It is also possible to detect the events linked to motor starting (INRUSH) currents.

Specifications

Mechanical characteristics
Dimensions (LxWxH):	252 x 88 x 44mm
Weight (including battery):	420g
Max conductor size:	45mm
Power supply
Battery type:	2 batteries 1.5V type AAA IEC LR03
Battery life:	approx. 150 hours of continuous use in power/energy measures
Auto Power Off:	approx. 5 minutes of idleness
Display
Characteristics:	graphic dot matrix, 128x128pxl with backlight
Sample rate:	128 samples/period (@ 50Hz)
Display update rate:	1 times/sec
Conversion mode:	TRMS
Climatic conditions
Reference temperature:	23°C ± 5°C
Operating temperature:	0 ÷ 40°C
Operating humidity:	<80%RH
Storage temperature:	-10 ÷ 60°C
Storage humidity:	<70%RH
Reference guidelines
Comply with:	IEC/EN 61010-1, IEC/EN61010-2-032
EMC:	IEC/EN61326-1
Safety of test leads:	IEC/EN61010-031
Insulation:	double insulation
Pollution degree:	2
For inside use, max height:	2000m
Installation category:	CAT IV 600V to ground, max 1000V between inpu
