Megger VF-T5 Voltage Detector & Infrared Thermometer | CAT IV

Megger VF-T5 Voltage Detector & Infrared Thermometer – CAT IV 1000V Safety Rating

Electrical work demands constant vigilance. You’re checking switchboards, testing outlets, troubleshooting circuits—and every time you approach live equipment, there’s risk. Traditional contact-based testing means getting close to energized conductors, while thermal problems often go unnoticed until equipment fails.

Carrying separate tools for voltage detection and temperature measurement slows you down and clutters your kit. What you need is a reliable way to identify both electrical hazards and heat issues before they become dangerous or costly problems.

Australian electricians, maintenance technicians, and solar installers face another challenge: job site conditions that test equipment durability. Dusty environments, unexpected weather, and the demands of working across multiple locations each day mean your testing gear needs to handle real-world conditions without missing a beat.

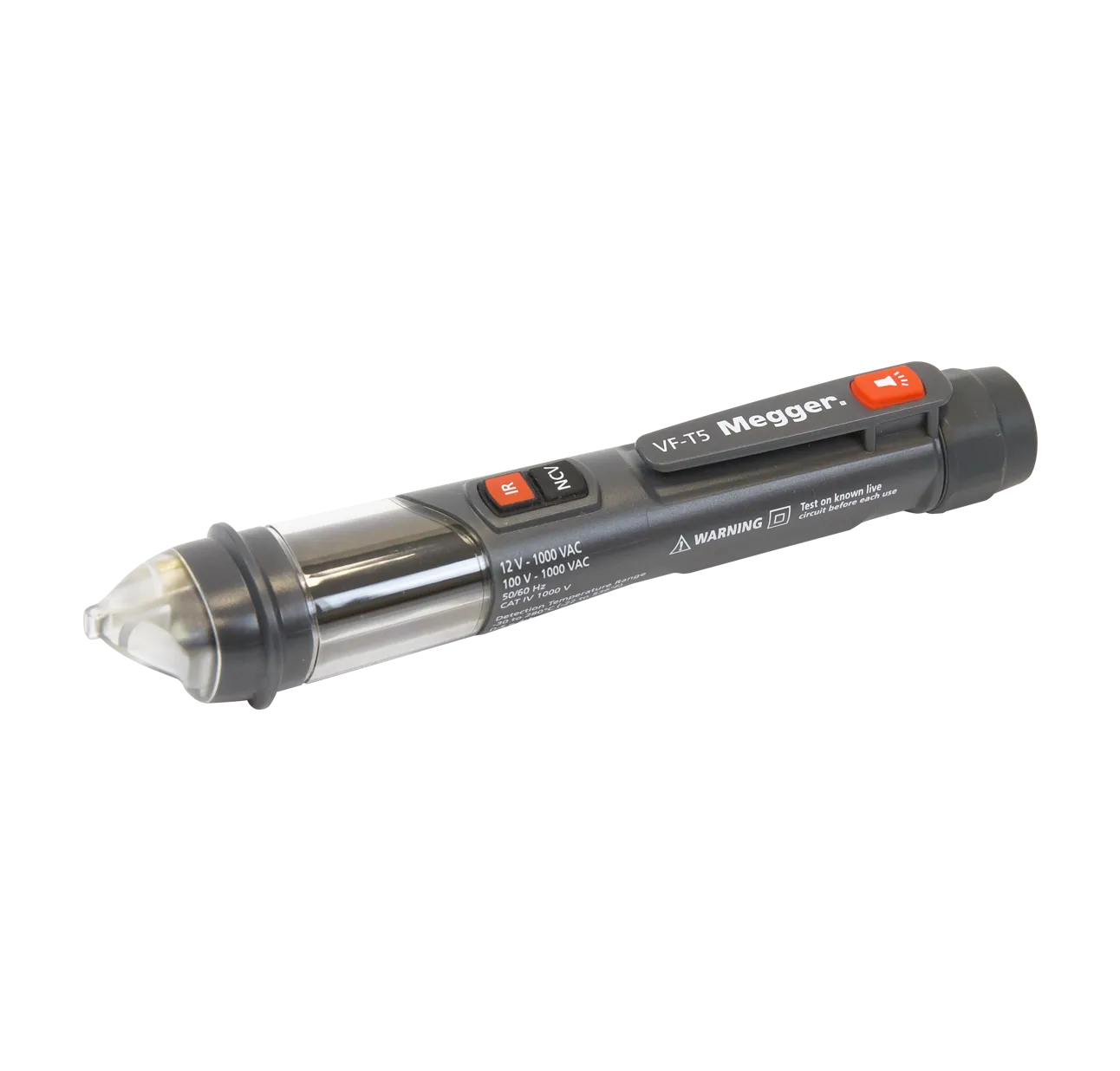

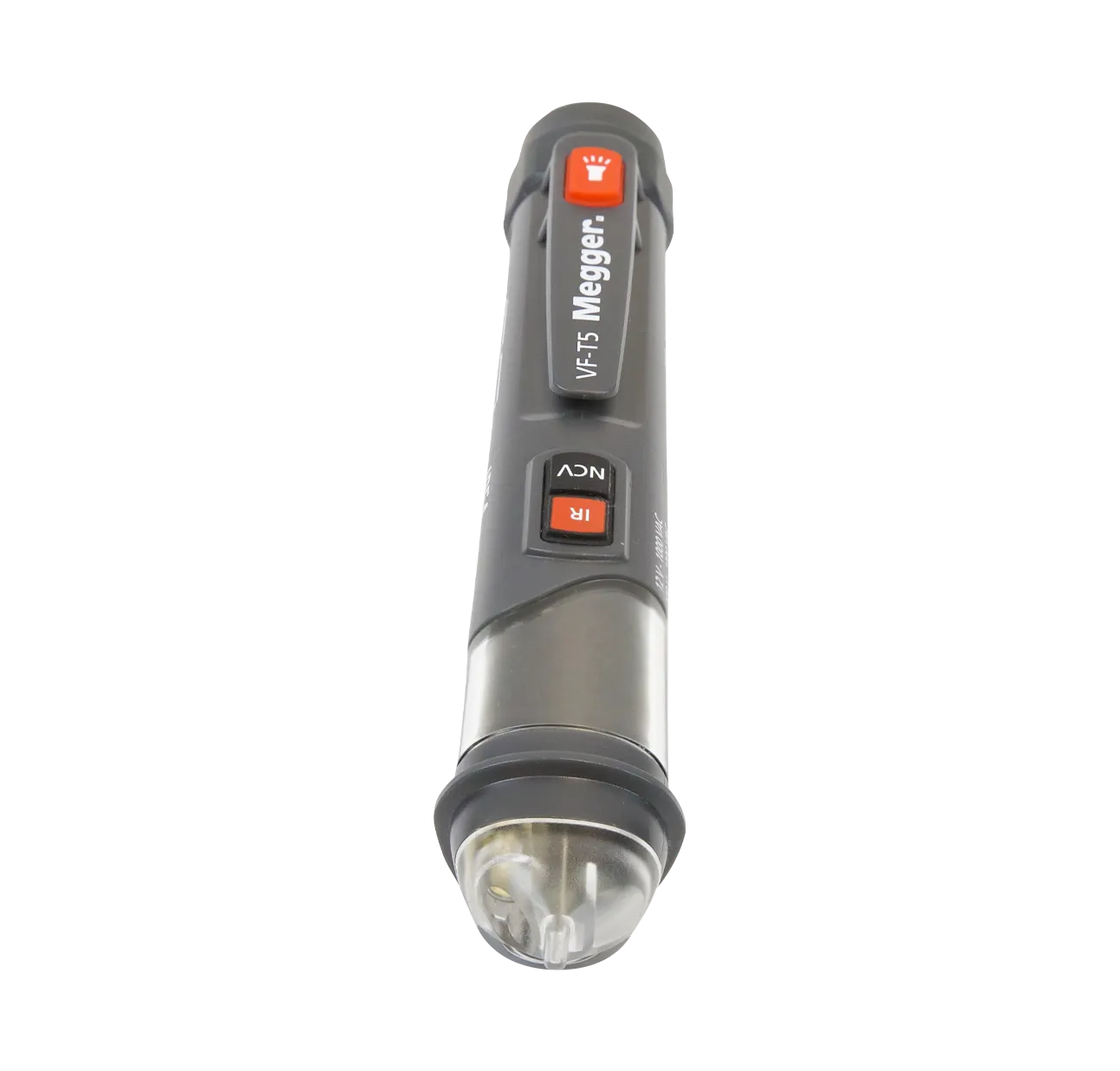

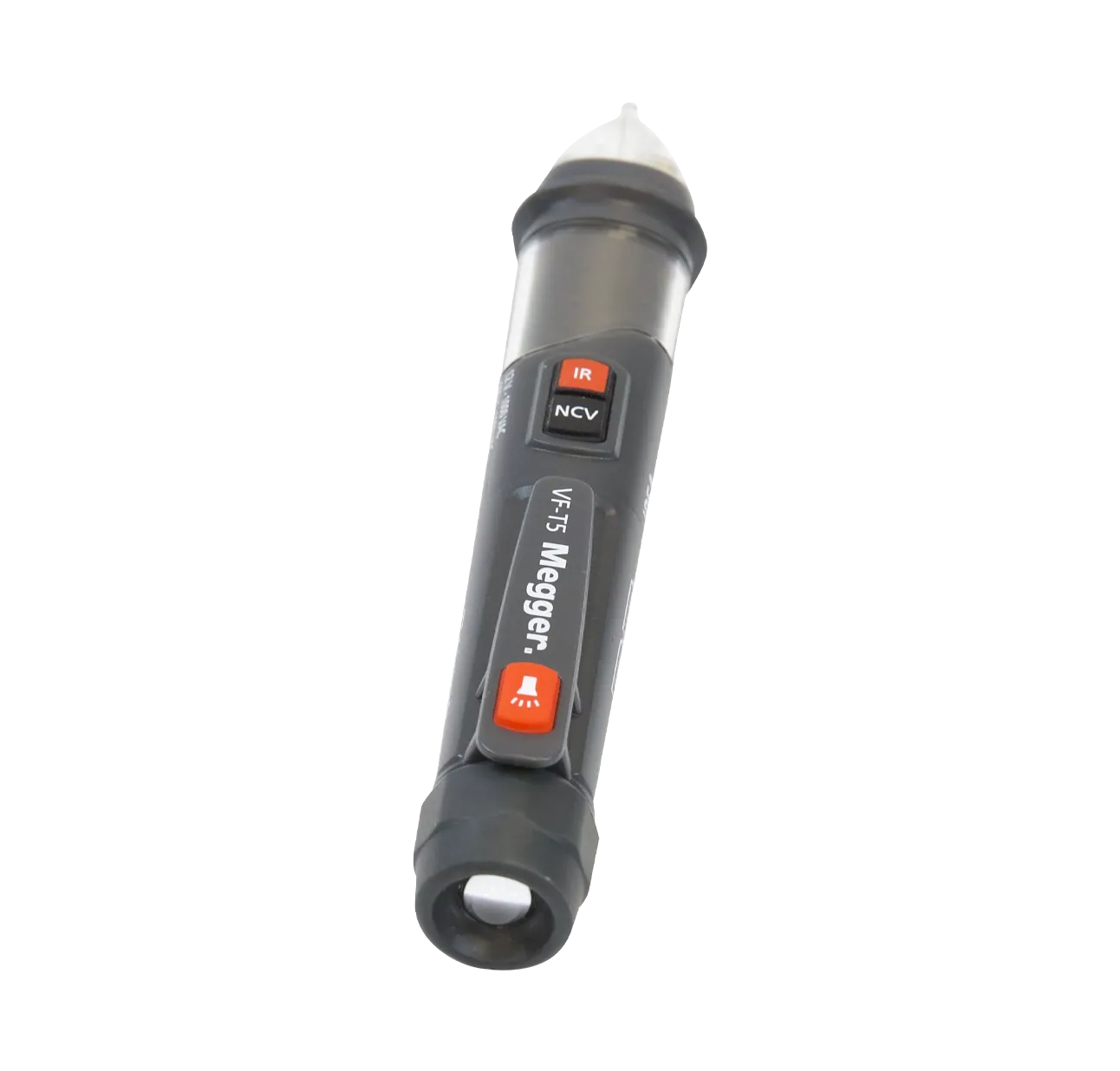

The Megger VF-T5 solves both challenges in a single, pocket-sized tool that’s ready when you are. This non-contact voltage detector lights up and beeps when it senses AC voltage from 12V to 1000V—no probe contact needed, so you can verify circuits are dead before you touch them.

The integrated laser infrared thermometer measures surface temperatures from -30°C up to 280°C, helping you spot overheating components, loose connections, or overloaded circuits that could lead to equipment failure or fire hazards.

Built to Megger’s reputation for reliability, the VF-T5 carries a CAT IV 1000V safety rating—the highest category for electrical test equipment—meaning it’s certified for use on primary distribution systems and overhead lines.

The IP54-rated enclosure keeps dust and water spray out, so it performs whether you’re working in a clean control room or a dusty substation. Two AAA batteries power the unit, and a bright LED torch helps you see into dark panels and tight spaces.

This isn’t just about detecting voltage or reading temperature—it’s about working smarter and safer. With both functions in one tool, you can quickly assess electrical and thermal conditions without swapping between devices, keeping your workflow efficient and your focus on the job.

Key Benefits & Features

• Dual-Range Non-Contact Voltage Detection for Safer Electrical Work
  The VF-T5 offers two voltage detection ranges: 12V to 1000V AC and 100V to 1000V AC, making it versatile for both low-voltage control circuits and high-voltage distribution systems. Hold the tip near a conductor, outlet, or cable, and the built-in sensor detects the electric field without physical contact.
  Visual and audible alerts (LED and beeper) confirm voltage presence, so you can verify circuits are isolated before starting work. This non-contact approach reduces arc flash risk and protects you from accidental energization—critical when working on switchboards, solar arrays, or industrial equipment.
• Laser Infrared Thermometer Identifies Overheating Before Failure
  Temperature anomalies signal trouble: a loose connection heats up, an overloaded circuit runs hot, or a failing component begins to degrade. The VF-T5’s infrared thermometer measures surface temperatures from -30°C to +280°C with 0.1°C resolution, letting you scan cables, breakers, terminals, and motors quickly.
  The 4:1 distance-to-spot ratio means you can measure temperature from a safe distance—essential when checking energized equipment. Catch thermal issues early, and you prevent downtime, equipment damage, and potential fire hazards.
• CAT IV 1000V Safety Rating Provides Maximum Protection
  Electrical safety categories aren’t just bureaucratic boxes—they define where and how safely you can use test equipment. CAT IV 1000V is the highest rating available, certifying the VF-T5 for use on primary supply lines, utility meters, and overhead service connections.
  Whether you’re working on commercial switchboards, solar installations, or industrial distribution systems, this rating gives you confidence the tool meets strict international safety standards. Megger’s engineering ensures reliable performance even in high-energy electrical environments.
• IP54 Rating Handles Australian Job Site Conditions
  Dustproof and water-resistant, the VF-T5’s IP54-rated construction stands up to job site realities. Working in a dusty factory? Testing equipment outdoors when rain threatens? The sealed enclosure protects internal electronics from dust ingress and water splashes.
  This durability matters when you’re moving between sites, working in harsh industrial environments, or simply need a tool that won’t let you down when conditions aren’t perfect. Reliable performance means fewer tool failures and less time lost to equipment problems.
• Built-In LED Torch for Low-Light Troubleshooting
  Electrical panels, ceiling cavities, and equipment cabinets aren’t always well-lit. The VF-T5 includes a bright LED torch so you can see what you’re testing without juggling a separate flashlight.
  Check connections inside dark switchboards, inspect wiring in roof spaces, or work in dimly lit plant rooms—the integrated torch gives you the visibility you need to work accurately and safely. One less tool to carry, one less thing to fumble for when you need both hands free.
• Compact and Pocket-Friendly Design
  At just 155mm long and powered by two AAA batteries, the VF-T5 slips into a shirt pocket or tool pouch without adding bulk. The ergonomic pen-style body fits comfortably in your hand, and the button layout is intuitive—voltage detection on one control, temperature measurement on another.
  Quick access means you’re testing faster, and the lightweight design reduces fatigue during long workdays. It’s the kind of tool you’ll actually carry every day because it’s there when you need it and out of the way when you don’t.

TECHNICAL SPECIFICATIONS

APPLICATIONS & USE CASES

Electrical Contractors & Maintenance Technicians
Verify circuits are de-energized before beginning work on switchboards, distribution boards, and control panels.
Use the infrared thermometer to identify hot spots on breakers, bus bars, and cable terminations during routine maintenance inspections—catching loose connections before they cause failures or fires.

Solar PV Installers
Test for residual voltage in DC solar arrays even after disconnecting inverters, and check AC connections at switchboards before working on grid-tie systems.
The temperature function helps identify poorly terminated connections in combiner boxes and inverters that can lead to system downtime or fire risk.

Industrial & Facility Maintenance
Scan motor terminals, pump control panels, and production equipment for overheating components during predictive maintenance rounds.
Non-contact voltage detection keeps you safe when working near energized industrial machinery, while temperature readings help schedule maintenance before equipment fails.

HVAC & Refrigeration Technicians
Check for live voltage in air conditioning units, refrigeration compressors, and control circuits without removing covers. Measure compressor case temperatures and motor windings to assess performance and identify overheating issues that signal mechanical or electrical problems.

Commercial & Residential Electricians
Quickly verify power outlets, light switches, and circuit breakers are safe to work on. The compact size makes it ideal for residential service calls where you need to test multiple circuits rapidly. The torch function is invaluable when working in ceiling cavities, under floors, or in dimly lit areas.

WHY CHOOSE MEGGER

When you purchase the Megger VF-T5 from Leda Electronics, you’re getting more than just a quality testing tool—you’re gaining access to a team that understands electrical work and stands behind what we sell.

We specialize in test and measurement equipment for Australian trades, which means we speak your language and understand the requirements you face on job sites.

Every VF-T5 is backed by Megger’s global reputation for electrical testing excellence—these aren’t generic imports, but precision instruments from a brand trusted by electricians and engineers worldwide. We provide fast shipping across Australia so you’re not waiting around when you need gear, and our support team can help with technical questions or advice on which tools suit your specific applications.

Need calibration services down the track? We’ve got you sorted there too. We 0ffers accredited calibration for test equipment, helping you maintain compliance and accuracy. Whether you’re an independent sparkie, part of a maintenance crew, or managing a larger contracting business, we’re here to keep your testing tools reliable and your work compliant.

FREQUENTLY ASKED QUESTIONS

Q: What’s the difference between the two voltage detection ranges (12-1000V and 100-1000V)?
A: The dual ranges give you flexibility. The 12-1000V range is more sensitive and useful for detecting lower voltage circuits like 12V or 24V control systems, security circuits, or automotive applications.
The 100-1000V range is better suited for mains voltage detection (240V/415V) where you want to avoid false positives from low-voltage induced currents. Switch between them depending on what you’re testing.

Q: Does the infrared thermometer require contact with the surface?
A: No—it’s a non-contact laser infrared thermometer. Point the laser at the surface you want to measure, press the button, and it reads the temperature from a distance. The 4:1 distance-to-spot ratio means if you’re 40 cm away, you’re measuring a spot about 10 cm in diameter. This lets you check energized equipment safely without touching hot or live components.

Q: Is the CAT IV 1000V rating really necessary, or is that overkill?
A: If you work on primary distribution systems, switchboards fed directly from transformers, or overhead service lines, CAT IV is essential—not overkill. It certifies the tool can withstand the high-energy transient voltages present in those environments.
Even if you mostly work at lower categories (CAT III or II), having a CAT IV-rated tool provides an extra safety margin. Better to have protection you don’t always need than wish you had it when things go wrong.

Q: How accurate is the temperature measurement for electrical troubleshooting?
A: The VF-T5 provides ±2°C accuracy across most of the working range (+21°C to +280°C), which is more than adequate for electrical troubleshooting. You’re not looking for laboratory precision—you’re spotting temperature differences that indicate problems. If one breaker terminal is 30°C hotter than the others, that’s a clear sign of a loose connection or overload, and the VF-T5 will show that difference reliably.

Q: What’s included in the box, and are calibration certificates available?
A: The VF-T5 comes with the tester unit, two AAA batteries, and Megger’s standard documentation. For calibration certificates and traceable calibration services, contact us—we can arrange calibration either at the time of purchase or as part of ongoing compliance management for your test equipment. This ensures your instrument meets Australian standards and regulatory requirements.
