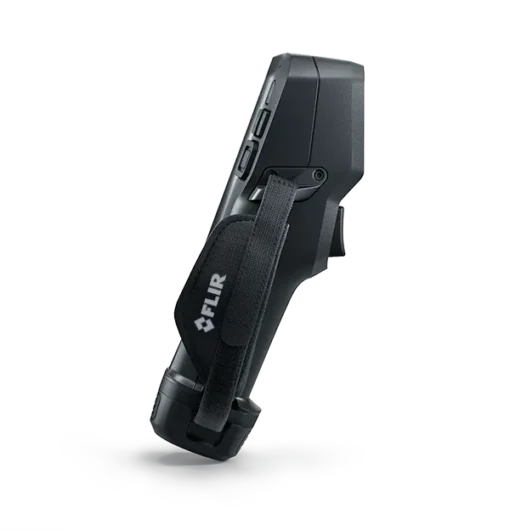

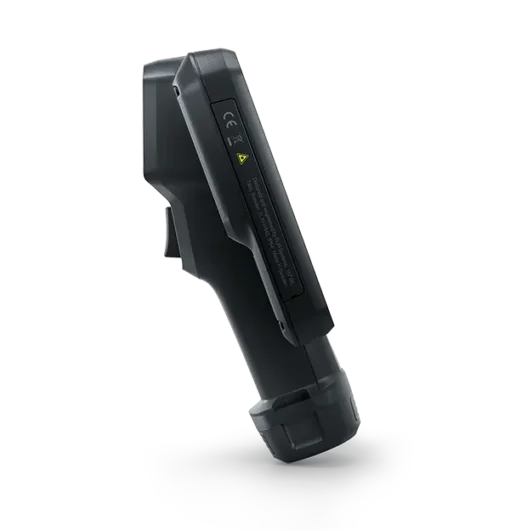

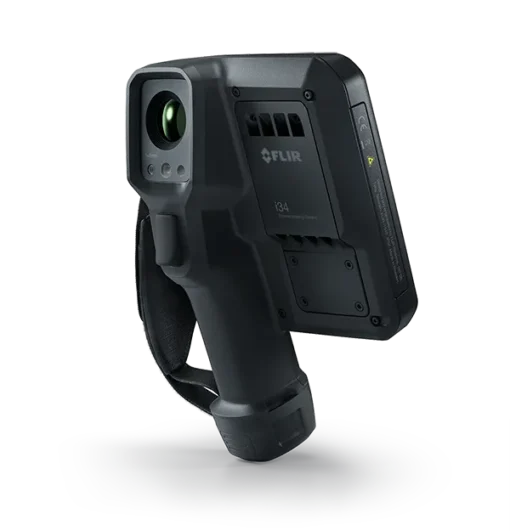

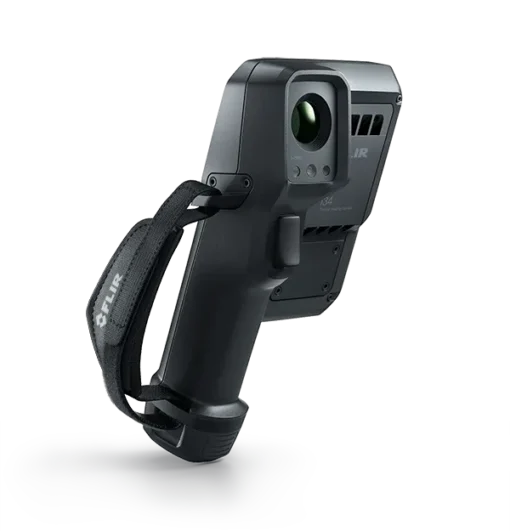

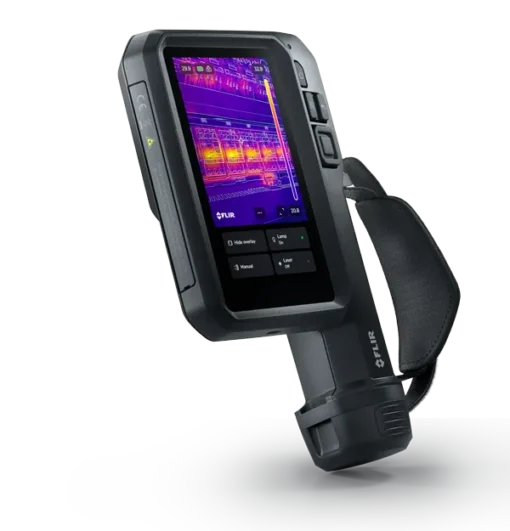

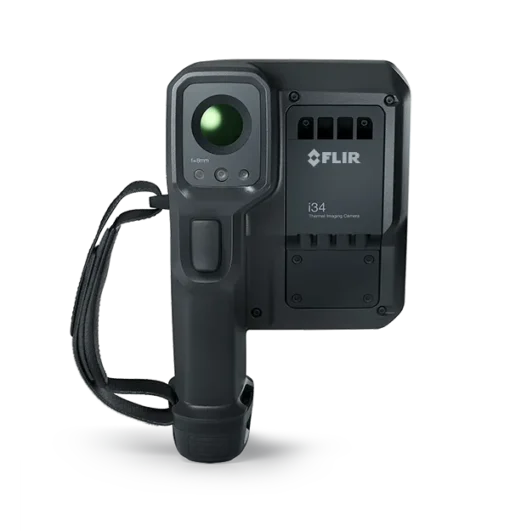

FLIR i34 App-Enabled Thermal Camera
FLIR i34 App-Enabled Thermal Camera - Image 2
FLIR i34 App-Enabled Thermal Camera - Image 3
FLIR i34 App-Enabled Thermal Camera - Image 4
FLIR i34 App-Enabled Thermal Camera - Image 5
FLIR i34 App-Enabled Thermal Camera - Image 6
FLIR i34 App-Enabled Thermal Camera - Image 7
Flir

FLIR i34 App-Enabled Thermal Camera

The FLIR i34 thermal imaging camera makes NFPA 70B-compliant thermal inspections easy for all technicians.

This app-enabled thermal camera runs on the new ACE operating system, working like a smartphone for thermography. It’s cloud-connected and ready for your team.

With a sharp 240×320 resolution, a 5-inch touchscreen, and Wi-Fi/Bluetooth, the i34 helps you improve asset reliability efficiently. The FLIR i34 thermal camera is a powerful tool for electrical inspections and predictive maintenance.

Main Applications

  • Electrical and mechanical inspections across industrial and utility environments, enabling early fault detection and reduced downtime.
  • Enterprise-level condition monitoring programs with asset hierarchy, cloud-based data management, and team-wide collaboration.
  • Building diagnostics and facility maintenance, including moisture detection, HVAC performance checks, and energy loss assessments.

    FLIR i34 Datasheet

[gravityform id="3" title="false" description="true"]
Categories: , Tags: , , Brand:

The FLIR i34 App-Enabled Thermal Camera empowers technicians at any experience level to conduct fast, NFPA 70B-compliant inspections. It improves both asset reliability and safety. Built around the ACE operating system, it delivers a familiar, responsive user experience akin to a smartphone. It includes a full suite of FLIR, third-party, and custom apps for enhanced productivity.

With sharp 240 × 320 IR resolution, an intuitive 5-inch touchscreen, and integrated Wi-Fi/Bluetooth connectivity, the FLIR i34 streamlines every step. From capturing thermal images to cloud sharing and reporting happens seamlessly.

The i34 is engineered to simplify and speed inspection workflows. Customizable applications help reduce manual data entry and improve consistency. This ensures your teams work efficiently in any environment. The platform actively guides less-experienced users, offering built-in training, safety information, and remote support. This raises the quality of inspections across your organization.

Documentation and communications are seamless with direct cloud uploads to FLIR Ignite. It has compatibility with FLIR Assetlink for advanced asset management.

Rugged, portable, and IP54-rated, the FLIR i34 is designed for demanding industrial settings. It addresses key decision-making needs with real-time infrared analytics and time-saving automation. Whether you’re conducting electrical, mechanical, or building inspections, the i34 delivers the actionable intelligence needed to reduce downtime. It ensures compliance and protects equipment investments—all with the backing of trusted FLIR expertise.

Key Features

  • 240 × 320 thermal resolution for sharp, detailed imagery
  • ACE operating system with app-based workflow customization
  • 5” capacitive touchscreen for intuitive operation, even with gloves
  • Wi-Fi and Bluetooth connectivity for instant uploads to FLIR Ignite and remote device integration
  • NFPA 70B compliance support through robust measurement and analytics features
  • Onboard guidance, training, and remote support tools
  • IP54 rating for dust and water resistance, built for industrial use

Specification

Technical Specifications

Model

Flir i34

Imaging and optical data

IR resolution

240 × 320 pixels

Thermal sensitivity/ NETD

<40 mK at 30°C (86°F)

Field of view (FOV)

38° × 49°

Minimum focus distance

0.5 m

Spatial resolution

(IFOV)

2.9 mrad

F-number

1.4

Image frequency

30 Hz

Focus

Fixed focus

Spectral range

7.5–13 µm

Color palettes

Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC

User interface

Display

5 in. 720 × 1280 color LCD

Touch screen

Capacitive touch

Text

Text annotation on image using onscreen keyboard

Flashlight

Manually activated bright LED

Image adjustment

Automatic/Manual

Model

Flir i34

Laser pointer

Laser

Class 2

Laser alignment

Position of laser pointer automatically displayed on the infrared image

Image presentation modes

Image modes

MSX, Thermal, Picture-in-Picture, Digital camera

Measurement

Camera temperature range

−20°C to 200°C (−4 to 392°F) 10°F to 450°C (50°F to 842°F)

Accuracy

±2°C (±3.6°F) or ±2%

Measurement analysis

Spotmeter

Center spot, box with min./max.

Isotherm

Above, Below

Delta T

Yes, NFPA 70B compliant

Emissivity correction

Variable from 0.1 to 1.0

Emissivity table

Emissivity table of predefined materials

Measurements correction

Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation

1-touch level/span

Yes; automatic contrast

Model

Flir i34

Storage of images

File formats

Standard JPEG, 14-bit measurement data included

Storage media

Internal memory, onboard Flir Ignite cloud and Assetlink connectivity

Digital camera

Digital camera, resolution

8 MP, Autofocus

Digital camera, FOV

50.5° × 64.5°

Data communication interfaces

Interfaces

USB-C: Data transfer to and from PC and Mac

device

Display port over USB-C

Wi-Fi

IEEE 802.11 a/ac/b/g/n (2.4 and 5 GHz)

Cellular

No

Radio

Operating frequency

WLAN 2.4 GHz: 2412 to 2462 MHz

WLAN 5 GHz: 5150 to 5250 MHz

Power system

Battery type

Rechargeable Lithium-ion battery

Battery operating time

4 hours at 25°C (77°F) ambient temperature and

typical use

Charging system

Battery is charged inside the camera or in specific charger (included)

Charging time

2 hours in charger / 4 hours to 90% capacity

in-camera

Power management

Automatic shut-down

AC operation

Optional accessory: 45 W AC adapter, 100 V to

240 V AC input, 15 V DC, 3 A output to camera

Environmental and certifications

Drop test

2 m (6ft 7 in)

Encapsulation

IP54 IP54(IEC 60529)

Operating temperature

range

–15°C to 50°C (5°F to 122°F)

Storage temperature range

–40°C to 70°C (–40°F to 158°F)

Humidity (operating and storage)

IEC 60068-2-30/24 h 95% relative humidity

EMC

EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN

61000-6-2, FCC 47 CFR Part 15 Class B

Radio spectrum

ETSI EN 300 328

ETSI EN 301 893

FCC 47 CFR part 15

RSS-247

Shock

25 g (IEC 60068-2-27)

Vibration

2 g (IEC 60068-2-6)

Model

Flir i34

Physical data

Camera weight, incl. battery

0.8 kg (1.76 lb)

Camera size

(L × W × H)

225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in)

Color

Black

Shipping information

Packaging type

Cardboard box

Package includes

Infrared camera with battery Extra battery

Battery charger

USB-C cable

Printed documentation Hard transport case Wrist strap

Packaging, weight

3.1 kg (6.83 lbs)

Packaging, size

385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

P/N

18455-1101

FAQ's

1. How does the FLIR i34 simplify thermal inspections?
The i34 runs on the ACE operating system, using apps to guide workflows, reduce manual steps, and automate reporting. It also offers training and remote support directly on the device.

2. What is the image quality of the FLIR i34?
It features a sharp 240 × 320 thermal detector and an 8 MP visible camera, providing detailed thermal and visual images for accurate inspections.

3. Is the FLIR i34 compliant with NFPA 70B?
Yes, the camera is designed to support NFPA 70B-compliant inspections with precise temperature measurement, documentation, and reporting capabilities.

4. How can data be shared from the FLIR i34?
Thermal images and reports can be uploaded instantly to the FLIR Ignite cloud or via Bluetooth/Wi-Fi to other devices or asset management systems.

5. Is the FLIR i34 suitable for field use?
Absolutely. It’s IP54 rated for dust and water resistance, drop-tested up to 2 meters, and built for reliable performance in demanding industrial conditions.
