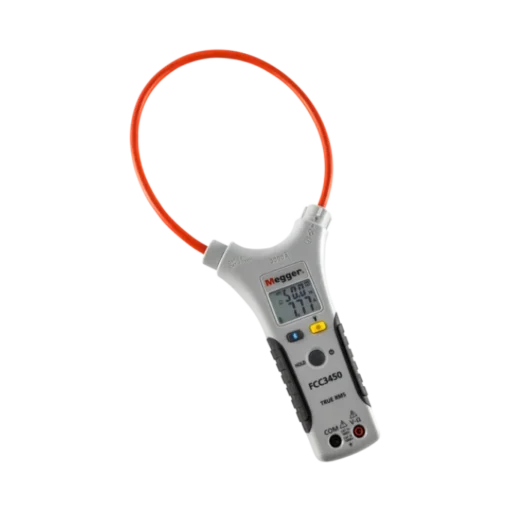

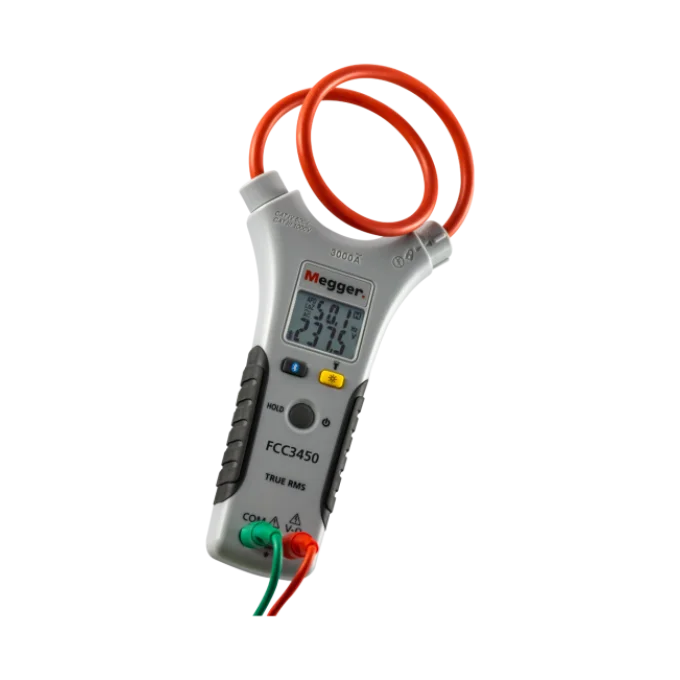

The FCC3450 3000 A flexible clamp meter is a Bluetooth® enabled flexible current clamp, designed for AC/DC voltage, frequency, continuity, and resistance measurements, as well as AC current up to 3000 A.
It measures True RMS voltage up to 1000 V AC/DC and comes with built- in display with 10 000 count resolution. As well as resistance, continuity, frequency, and capacitance for quick verifications,. iIt meets CAT IV 600 V and CAT III 1000 V AC/DC safety ratings.
Due to the length and flexibility of the coil, measurements can be made around large conductors, or those conductors inaccessible to a fixed-head clamp. Rogowski coils offer flexibility as they do not rely on a rigid iron core, making them easy to get around larger conductors and easy to get into tight confined spaces, this flexibility is a key advantage of the FCC3450.
Using Bluetooth, the FCC3450 can be paired with the free Megger Link™ app, giving you the ability to collect remote live readings or record measurements directly to your smart device for storage or report creation. The app is compatible with iOS and Android and allows you to capture trending and graphing data to share with your team or for faster diagnosis and detection of faults.
