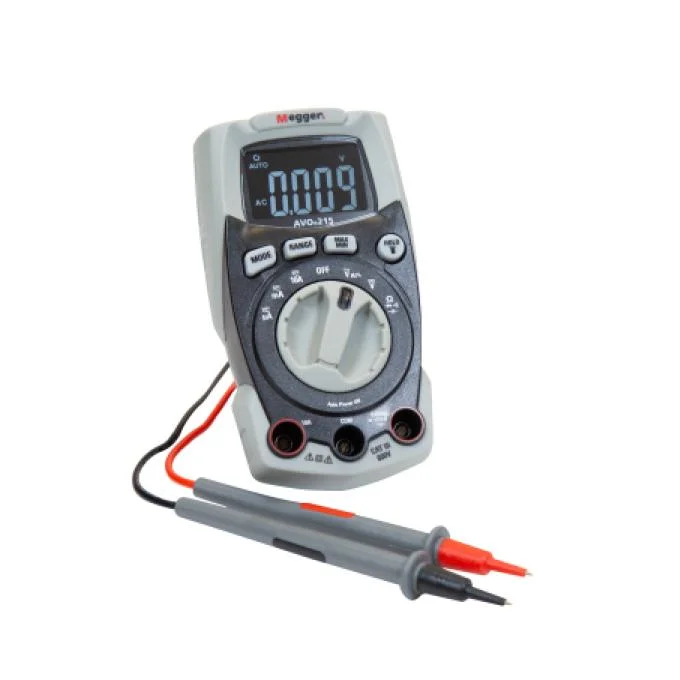

Megger AVO215 – CAT III TRMS Multimeter Overview
The Megger AVO215 is a versatile and robust true RMS multimeter designed for both professional and personal use in demanding environments.
Its compact, pocket-sized design makes it suitable for easy transportation, while its multitude of features ensures seamless measurement of voltage, current, resistance, capacitance, and more.
Whether you are an electrician, technician, or an enthusiast looking to handle electrical tasks with confidence, the AVO215 is an ideal choice.
Key Features
- True RMS Measurement: This multimeter measures both AC and DC voltages up to 600 V, ensuring that you get accurate readings under all scenarios.
- Current Measurement Capabilities: With the ability to measure currents up to 10 A, and a temporary overload capacity of 20 A for short durations (30 seconds max), this instrument covers a wide range of applications.
- High Precision and Resolution: The AVO215 offers a 4000 count resolution, allowing you to obtain precise results for various electrical metrics.
Functional Versatility
The AVO215 is equipped with a comprehensive range of additional functions:
- Resistance Measurement: Measures from 0 to 40 MΩ, which is essential for verifying circuit integrity.
- Capacitance Measurement: Offers readings from 0 to 4000 µF, beneficial for testing capacitors in different devices.
- Frequency Measurement: Capable of measuring frequencies from 10 Hz to 10 kHz, allowing for the analysis of oscillating signals.
- Duty Cycle Measurement: Displays the ratio of time that a circuit is energised compared to de-energised, expressed as a percentage, which is crucial for pulse width modulation (PWM) evaluations.
User-Friendly Functions
Ease of use is at the forefront of the AVO215’s design:
- Auto or Manual Ranging: Users can select auto-ranging for convenience or choose manual range selection for more control over measurements.
- MAX/MIN Function: This function allows the user to capture maximum and minimum readings effortlessly, eliminating the need for constant display monitoring.
- Data Hold Feature: This function enables you to freeze a reading on the display for easier reading and note-taking.
Built-in Safety and Convenience Features
The AVO215 complies with CAT III 600 V safety standards, making it a reliable choice for professionals working with electrical systems. Additionally, it comes with:
- A built-in flashlight that enhances visibility in low-light conditions, ensuring you can work safely and efficiently.
- An audible continuity function complemented by a buzzer for quick verification of circuit paths.
- A diode test feature which allows thorough testing of semiconductor junctions.
Package Contents
The AVO215 is shipped with everything you need to get started:
- DMM lead set for immediate usage.
- A protective carry pouch for secure transport and storage.
