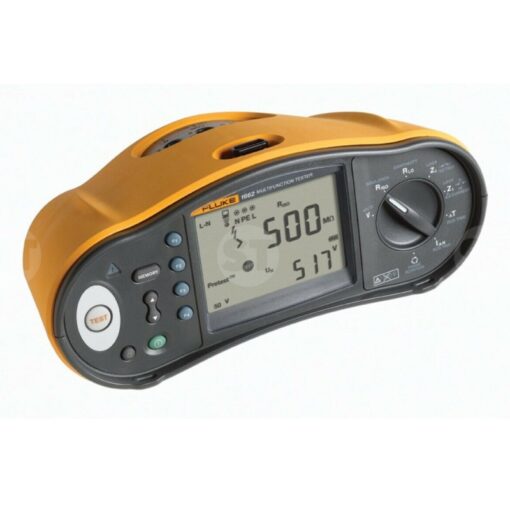

FLUKE 1662 Multifunction Installation Tester
The Fluke 1662 Multifunction Installation Safety Tester is a solid, reliable multifunction tester that has everything the user might need for day to day installation inspections.
The 1662 can measure multiple variables including True RMS AC voltage, insulation resistance, loop and line impedance, prospective earth fault current, RCD tripping speed, and RCD/FI current. Tests can also be carried out for continuity, ramp test, and RCD triggers whilst indications are also given for has sequence. There is a wide degree of flexibility with each test with choices of range, resolution and test-type for the majority of different values so the tester can be adapted to meet various requirements.
The user also benefits from several other features in addition to the Fluke 1662’s measurement functions. Auto-start can be engaged for RCD and loop testing whilst a wiring polarity checker scans for broken PE and N wires. The self-test function helps ensure that readings are always accurate and the user can always check the instrument against the values given in the supplied calibration certificate. The device is operated via a simple dial and results are shown on the large, bright LCD screen.
The Fluke 1662 comes provided with a comprehensive set of accessories including a hard carry case, test leads, a zero adapter, a user manual/CD, a mains cord, a padded neck strap, a remote probe, a fused test probe set, and a calibration certificate in addition to the instrument itself. With an IP40 seal rating and Cat III 500V over voltage safety categorization, the user can have confidence in this sturdy, portable multifunction tester which meets all relevant legal standards.
FLUKE 1662 Features
- Measures RCD switching time and tripping level (ramp test)
- Measures trip time and current for RCD type A & AC in one test
- Measures RCD variable current
- Provides automatic RCD test sequence
- Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
- Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
- Includes a phase sequence indicator
- Comes with hard carrying case, padded carrying and waist strap, and remote control probe and lead
Fluke 1662 Multifunction Installation Tester Includes:
- 6x AA (IEC LR6) cell batteries
- C1600 hard carrying case
- Zero adapter
- Heavy duty mains cord
- STD standard test lead set
- C1600 hard carrying case
- Padded carrying and waist strap
- Quick reference guide
- TP165X remote control probe and lead
