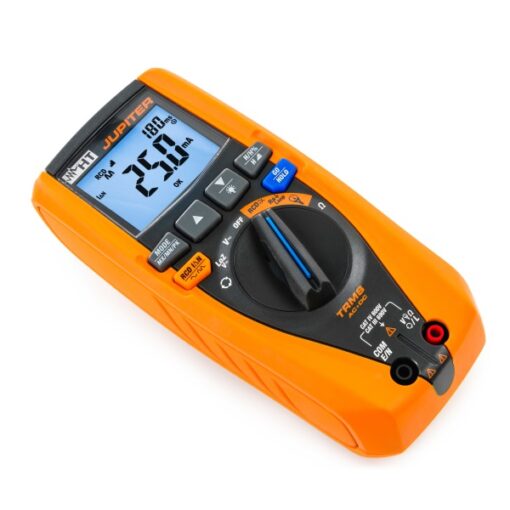

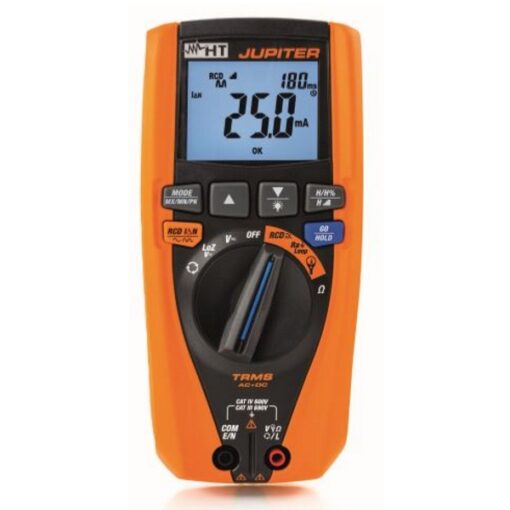

HT Instruments JUPITER Multifunction Mulimeter

HT-Italia-Aus-small

JUPITER THE MULTIFUNCTION MULTIMETER FOR ELECTRICAL INSTALLATION SAFETY TESTING

HT Instruments revolutionizes the portable instrument market by introducing the new JUPITER.

The first multimeter who incorporates the functions available only in standard electrical safety testers and professional High-end multimeters.

  • Test tripping time of RCDs type A and AC up to 300mA*.
  • Tripping current of RCDs type AC up to 30mA.
  • Non-trip earth ground resistance.
  • Line-to-Neutral, Line-to-Line and Line-to-Ground impedance (resolution 0.1Ohm) with prospective short-circuit/fault current calculation.
  • Current up to 3000A by means of clamp-on or flexible external transducer. ›
  • Dynamic inrush current of motors and loads through the DIRC function allowing time base selection. ›
  • Leakage current by means of the clamp-on transducer HT96U.
  • Voltage and current harmonics with THD% calculation and function to the 25th Harmonic (Higher Harmonic Ordering) showing highest harmonic values first.
  • One-lead phase sequence detection
  • JUPITER is provided with ISO9000 calibration certificate as standard.

pdf-6    HT Jupiter Brochure

pdf-6    HT Jupiter Datasheet

pdf-6    HT Jupiter User Manual

If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.

The HT Instruments JUPITER Multifunction Mulimeter provides:

  • Autorange measurements with automatic AC/DC detection
  • LoZ low impedance voltage input to eliminate ghost voltage readings (caused by the capacitive coupling among active conductors close each other)
  • One-lead phase sequence detection
  • JUPITER is provided with ISO9000 calibration certificate as standard.

Jupiter Banner 1

HT Instruments JUPITER Multifunction Mulimeter Features:

  • Autorange measurements with automatic AC/DC detection.
  • DC, AC TRMS, AC+DC TRMS voltage up to 690V.
  • Tripping time of RCDs type A and AC up to 300mA*.
  • Tripping current of RCDs type AC up to 30mA. ›
  • Non-trip earth ground resistance. ›
  • Line-to-Neutral, Line-to-Line and Line-to-Ground impedance (resolution 0.1Ohm) with prospective short-circuit/fault current calculation.
  • Current up to 3000A by means of clamp-on or flexible external transducer.
  • Dynamic inrush current of motors and loads through the DIRC function allowing time base selection.
  • Leakage current by means of the clamp-on transducer HT96U.
  • Voltage and current harmonics with THD% calculation and function to the 25th Harmonic showing highest harmonic values first.
  • One-lead phase sequence detection.
  • Low impedance voltage input to eliminate ghost voltage readings.
  • DC, AC TRMS, AC+DC TRMS current by means of external transducer.
  • Frequency of voltage and/or current.
  • Resistance and continuity with buzzer.
  • MIN/MAX/PEAK/HOLD functions.
  • 6000 count Display

Jupiter Banner 2

HT Instruments JUPITER Multifunction Mulimeter Functions

TRMS
AC/DC voltage 690V / AC+DC
LoZ Input
AC/DC current AC+DC with external clamp transducer
Frequency
Resistance and continuity test with buzzer
RCD tripping time 30mA, 100mA, 300mA A/AC
RCD trip current measurement RCD A/AC 30mA
Leakage current (with optional accessory HT96U)
Non-trip earth resistance
Voltage and current harmonics up to the 25th and THD%
Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current
Electric motor starting current (INRUSH)
Auto x1/2, x1, x2, x5, 0°, 180°
Phase sequence
Out come OK/NOT OK According with IEC60364-6
Backlit LCD display
Measurement category CAT IV 600V
Measuring counts 6000
MAX/MIN/HOLD
Bargraph

Standard Accesories.

C2033AU:   Three wire cable Red, Black, Green with Australian plug
4324-2:   Pair of test tips Red/Black 2/4mm straight banana
YABAT0001HT0:   Alkaline battery 1.5V, type AAA, IEC LR03, 4 pcs
YABRS0002HT0:   Carrying bag
YAMUM0066HT0:   User manual on CD-ROM
YAMUM0065HT0:   Quick reference guide
Calibration certificate ISO9000.
